A Comprehensive Guide to Types and Functionality of Network Switches

In the intricate landscape of computer networks, the role of network switches is pivotal. These devices form the backbone of local area networks (LANs), enabling efficient data transmission and connectivity among various devices. This comprehensive guide delves into what a network switch is, how it functions, and the different types that cater to diverse networking needs.

Understanding Network Switches

A network switch is a hardware device that connects multiple devices within a LAN and uses packet-switching to forward data to the appropriate destination. Unlike simpler devices like hubs, which broadcast data to all connected devices, switches operate at the OSI model’s data link layer (Layer 2).

This enables them to intelligently forward data only to the specific device intended to receive it, optimizing network efficiency and reducing unnecessary traffic.

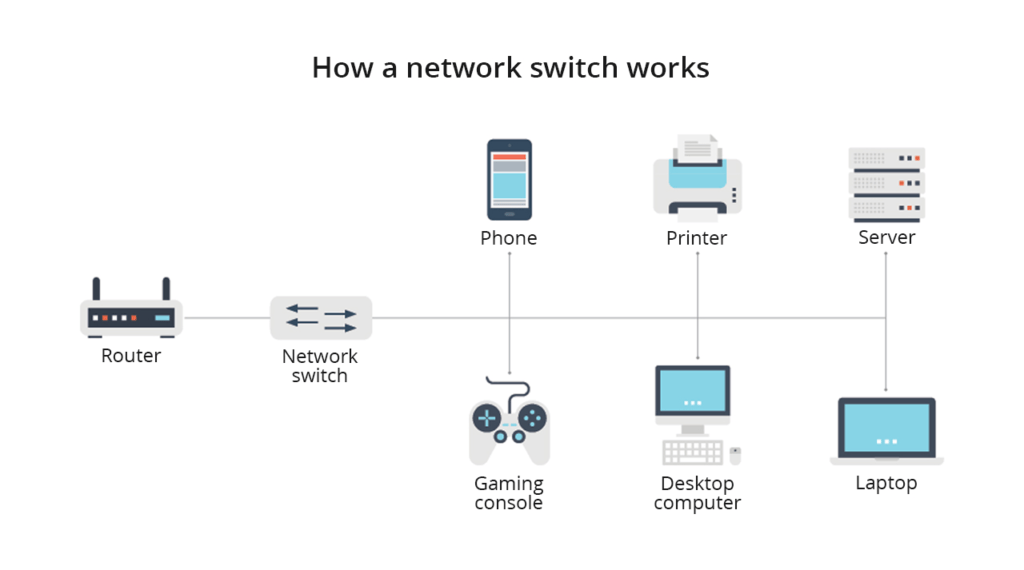

How do Network Switches Work?

Cisco Switch Suppliers Dubai provides a detailed insight into how network switches work.

·      Packet Switching

Network switches use packet-switching to manage data transmission. When a device on the network sends data, it is divided into packets, each with a destination address. The switch reads this address and determines the most efficient path to forward the packet to its destination.

·      MAC Address Table

Switches maintain a MAC address table that records the MAC addresses of devices connected to the network. This table allows the switch to identify the location of devices and make informed decisions about where to forward data.

·      Broadcast Domains

Unlike hubs, which create a single broadcast domain for all connected devices, switches make separate broadcast domains for each port. This segmentation reduces network congestion and enhances overall performance.

·      Collision Domains

Switches also create individual collision domains for each port, preventing collisions (data collisions occur when multiple devices attempt to send data simultaneously) and enhancing the reliability of data transmission.

Types of Network Switches

The following are distinct types of network switches.

·      Unmanaged Switches

Unmanaged switches are basic switches that operate without user configuration. They are plug-and-play devices, making them ideal for small networks where simplicity and ease of use are priorities. However, they lack advanced features and customization options.

·      Managed Switches

Managed switches offer greater control and customization. Network administrators can configure managed switches to optimize performance, implement security features, and monitor network activity. Managed switches are suitable for more extensive networks where a higher degree of control is necessary.

·      Layer 2 Switches

Layer 2 switches operate at the data link layer and use MAC addresses to forward data. They are efficient for local traffic management but lack the advanced features of Layer 3 switches.

·      Layer 3 Switches

Layer 3 switches, also known as multilayer switches, operate at the data link and network layers. They can make routing decisions based on IP addresses, providing enhanced functionality for more extensive networks.

·      PoE Switches

Power over Ethernet (PoE) switches transmit data and deliver electrical power to devices like IP cameras, VoIP phones, and wireless access points through the Ethernet cables. This eliminates the need for additional power sources.

·      Stackable Switches

Stackable switches can be physically interconnected to operate as a single unit, sharing resources and simplifying network management. This configuration improves scalability and facilitates easier upgrades.

·      Smart Switches

Positioned between unmanaged and managed switches, smart switches offer a middle ground by providing some customization options without the complexity of fully managed switches. They are suitable for growing networks that require more control.

Final Words – Choosing the Right Switch for Your Network

Selecting the appropriate network switch depends on the specific requirements of your network. Small businesses or home networks may benefit from the simplicity of unmanaged or smart switches, while larger enterprises with complex networking needs may opt for managed or layer 3 switches. Understanding the function and types of network switches empowers network administrators to make informed decisions, ensuring optimal performance, security, and scalability for their networks.
